Khoom piav qhia

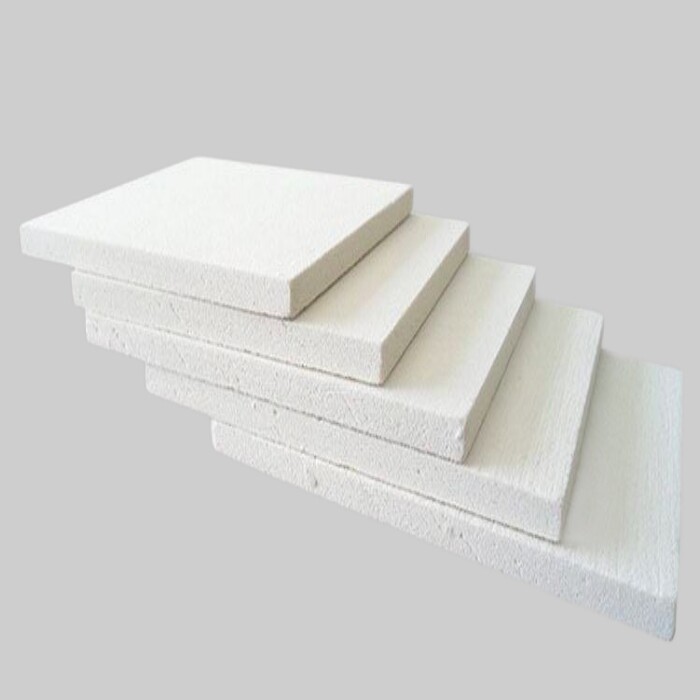

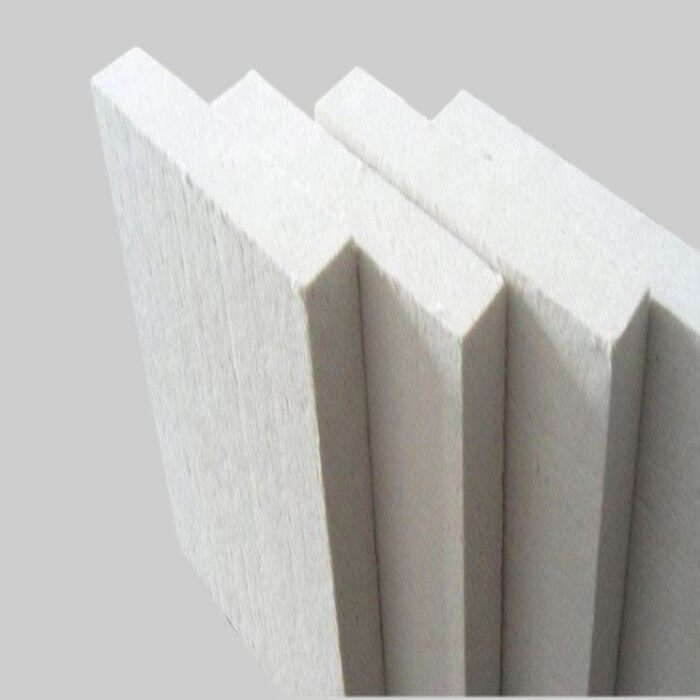

Refractory ceramic fiber board yog ua tiav los ntawm cov txheej txheem ntub dej ntub. Lub zog ntawm cov khoom siv no yog siab dua li daim pam fiber ntau thiab lub tshuab nqus tsev tsim kev xav, thiab nws yog qhov tsim nyog rau qhov chaw kub kub uas yuav tsum tau muaj zog ntawm cov khoom.
Daim ntawv thov ntawm refractory ceramic fiber board
● Non-ferrous hlau kev lag luam: rov qab rwb thaiv tsev cov ntaub ntawv, tundish thiab launder cover, siv rau pouring tooj liab thiab tooj liab alloys;
● Cov tshuaj tiv thaiv kub kub thiab cov khoom siv cua sov rov qab rwb thaiv tsev
● Kiln siv: Kub sab refractory (hloov cov pam fiber ntau), hnyav refractory backing, expansion pob qij txha;
Qhov zoo ntawm refractory ceramic fiber board
Nws tuaj yeem txiav thiab ntsia tau yooj yim, thiab tuaj yeem siv dav rau kiln, rauv, thiab lwm yam khoom siv kub.
CH Refractories manufactured Refractory ceramic fiber board yog customized, loj tuaj yeem ua raws li qhov yuav tsum tau ua.
Lub cev thiab tshuaj index ntawm refractory ceramic fiber board
|
Yam khoom |
XWM 40 |
xwv 45 |
xwv 48 |
XWM 50 |
XWBZ 15 |
|
Khoom siv |
Aluminium silicate |
Siab alumina |
Zirconia |
||
|
Al2O3% |
40-44 |
44-46 |
46-50 |
50-60 |
30-35 |
|
Al2O3+Si02% |
Ntau dua lossis sib npaug li 94 |
Ntau dua lossis sib npaug li 97 |
Ntau dua lossis sib npaug li 98 |
Ntau dua lossis sib npaug li 98 |
Ntau dua lossis sib npaug rau 98 (+ Zr02) |
|
ZrO2% |
- |
- |
- |
- |
Ntau dua lossis sib npaug li 15 |
|
Fe 2O3% |
Tsawg dua lossis sib npaug li 1. 2 |
Tsawg dua los yog sib npaug rau 1.0 |
Tsawg dua lossis sib npaug rau 0.8 |
Tsawg dua los yog sib npaug rau 0.5 |
Tsawg dua los yog sib npaug rau 0.5 |
|
Na2O + K2O% |
Tsawg dua los yog sib npaug rau 0.5 |
Tsawg dua los yog sib npaug rau 0.5 |
Tsawg dua lossis sib npaug rau 0.2 |
Tsawg dua lossis sib npaug rau 0.2 |
Tsawg dua lossis sib npaug rau 0.2 |
|
Service kub degree |
Tsawg dua los yog sib npaug li 1000 |
Tsawg dua los yog sib npaug li 1000 |
Tsawg dua los yog sib npaug li 1100 |
Tsawg dua los yog sib npaug li 1200 |
Tsawg dua los yog sib npaug rau 1350 |
|
Ntim ceev / kg.m3
|
200~600 |
200~600 |
200~600 |
200~600 |
200~600 |
|
Thermal conductivity /W(m.k)
|
Tsawg dua lossis sib npaug rau 0.14 (600 degree) Tsawg dua lossis sib npaug rau 0.18 (800 degree) |
Tsawg dua lossis sib npaug rau 0.14 (600 degree) Tsawg dua lossis sib npaug rau 0.18 (800 degree) |
Tsawg dua lossis sib npaug rau 0.18 (800 degree) Tsawg dua lossis sib npaug rau 0.22 (1000 degree) |
Tsawg dua lossis sib npaug rau 0.18 (800 degree) Tsawg dua lossis sib npaug rau 0.22 (1000 degree) |
Tsawg dua lossis sib npaug rau 0.88 (1000 degree) Tsawg dua lossis sib npaug rau 0.28 (1200 degree) |
|
Cua sov shrinkage ／％ |
Tsawg dua los yog sib npaug li 1.5 (900 degree, 24H) |
Tsawg dua los yog sib npaug li 1.5 (1000 degree, 24H) |
Tsawg dua los yog sib npaug li 1.5 (1100 degree, 24H) |
Tsawg dua los yog sib npaug li 1.5 (1200 degree, 24H) |
Tsawg dua los yog sib npaug li 1.5 (1300 degree, 24H) |
|
Loj loj |
600mmX400mmX({2}}) hli 900mmX600mmX({2}}) hli |
||||
FAQ
Q: Txawv Teb Chaws Trade-Express yog dab tsi?
Q: Kuv tuaj yeem tau txais tus nqi sai npaum li cas?
Q: Kuv puas tuaj yeem tau txais cov qauv rau kev kuaj?
Q: MOQ ntawm koj cov khoom yog dab tsi?
Q: Koj tuaj yeem lav koj cov khoom zoo li cas
Q: Lub teb chaws twg koj tsuas yog xa tawm mus rau?
Q: Lub sijhawm tsim khoom ntev npaum li cas?
Q: Lub sijhawm them nyiaj twg koj tuaj yeem lees txais?
Q: Koj puas tuaj yeem ua OEM? Los yog customized pob?
Q: Kuv tuaj yeem tuaj xyuas koj lub Hoobkas?
